Double Suction Pump Distributors & Suppliers
Become a distributor or project partner for Double Suction Pump. We support regional distributors and project integrators with OEM and private-label supply, technical training and marketing assets — with regional focus across Russia, the CIS, Central Asia and the Middle East, plus Africa, South America and Southeast Asia.
Buying double suction pumps — these run continuously on duties that cannot be shut down, so the questions that matter at order stage are about maintainability and replacement fit, not about wear.

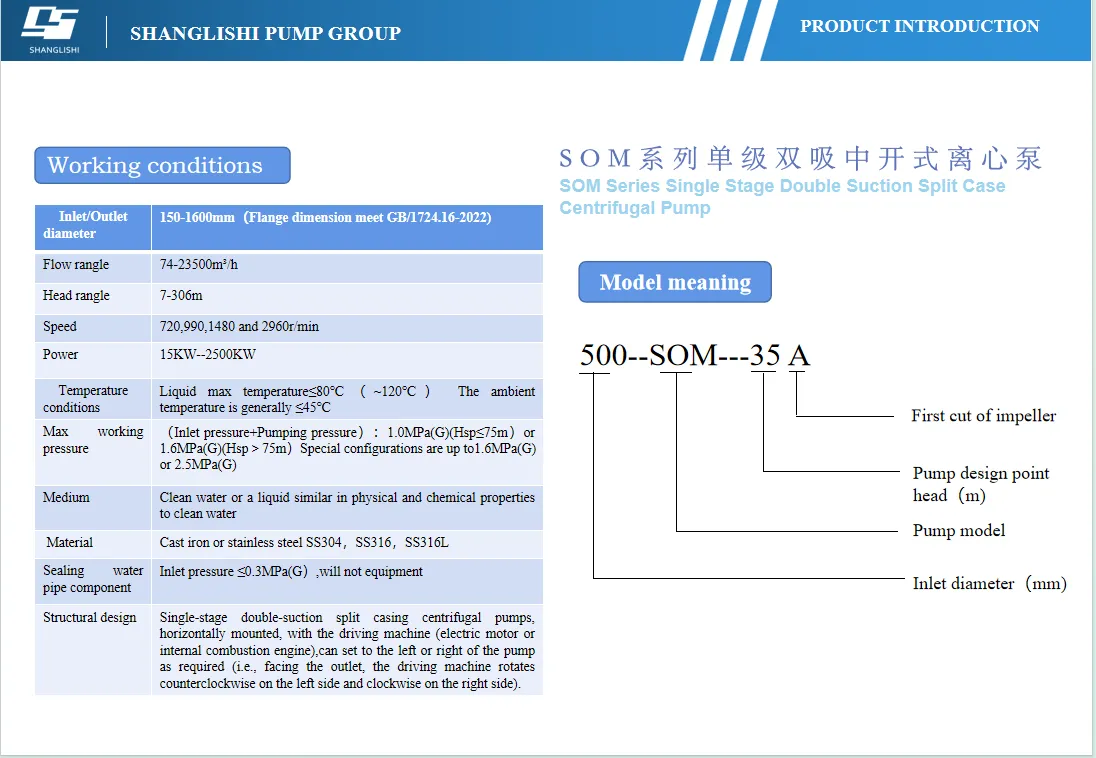

- SOM series to GB/T5657; flow 74–23,500 m³/h; power 15–2500 kW
- Connections 150–1600 mm
- Split casing — rotor lifts out with pipework in place
- Cast iron or SS304 / SS316 / SS316L to suit the water
- Driver mountable left or right of the pump
- Standard to 80 °C; to 120 °C on request
CE · EAC · ISO 9001 · ISO 14001 · ISO 45001
Ordering for Continuous Duty
These pumps are bought for availability. Four order-stage decisions determine how easy the installation is to live with.
- Driver side. Facing the outlet, the driver rotates counter-clockwise on the left side and clockwise on the right. Specify which suits the plant layout — changing it later is not trivial.
- Replacement fit. If the pump replaces an existing unit, send the baseplate and flange details with the enquiry. The split-case arrangement often allows a direct replacement with pipework unchanged, but only if the dimensions are checked first.
- Material against the water treatment. Cast iron suits most supply and cooling duty; treated or aggressive water may need SS304, SS316 or SS316L.
- Sealing water. Below 0.3 MPa(G) inlet pressure the sealing water pipe component is not required at all — worth confirming before designing it into the plant.
Supply, Certification and Inspection
We manufacture rather than trade — casting, machining, assembly and testing all happen in our own plants. That is what makes the technical answers on these pages possible in the first place.
| Minimum order | 1 set |
|---|---|
| Lead time | Standard models held in stock: 7–10 days. Other models: within 30 days, depending on quantity, wet-end material and model |
| Annual casting output | 18,000 tonnes |
| Payment terms | T/T, L/C and O/A |
| Packing | Fumigation-free wooden cases |
| Manufacturing | Four production bases and ten subsidiaries; casting, machining, assembly and testing in house |
| Foundry capacity | Six medium-frequency induction furnaces and two normalising furnaces |
| Engineering team | 85 core R&D and technical staff, averaging 15 years in the industry |
| Design and simulation | CFD hydraulic design, finite element analysis, casting simulation and 3D CAD; laboratory staffed 24 hours |
| Certification | ISO 9001:2015 covering quality, environment and occupational health; energy management system; CE under the MD and EMC directives; EAC 004 and EAC 010 |
| Testing | Every pump performance-tested before despatch, at a national-level pump testing centre to GB3216-2005 |
| Intellectual property | 5 invention patents and 25 utility model patents; drafting member of 5 industry group standards |
| Export markets | Pumps in service in more than 100 countries |
| Third-party inspection | Accepted; arrange the inspection body with the order |
| OEM / private label | Available; scope and conditions confirmed at enquiry |
More Pictures
What to Send With Your Enquiry
Send the flow and head, the medium and its temperature, the water chemistry, the driver side required, and — if replacing an existing pump — the baseplate and flange details. We will confirm the model and whether a direct replacement is possible.
Send Your Enquiry
Can the pump replace an existing unit without changing pipework?
Often yes. Send the baseplate and flange details with the enquiry and we will confirm before you order.
Which side should the driver be on?
Facing the outlet, the driver rotates counter-clockwise on the left and clockwise on the right. Specify at order stage against your layout.
Do we need a sealing water supply?
Not where inlet pressure is below 0.3 MPa(G) — the sealing water pipe component is not required in that case.
What is your minimum order quantity?
One set. Wear parts can be added to the same order and ship in the same consignment.
What is the lead time?
Standard models held in stock despatch in 7–10 days. Other models are delivered within 30 days, depending on quantity, wet-end material and model.
What payment terms do you accept?
T/T, L/C and O/A, agreed against order size and the commercial relationship.
Do you hold CE and EAC certification?
Yes — ISO 9001:2015 covering quality, environment and occupational health, an energy management system certificate, CE under the MD and EMC directives, and EAC 004 and EAC 010 for the Eurasian Economic Union.
Are you a manufacturer or a trading company?
A manufacturer. Four production bases and ten subsidiaries, with casting, machining, assembly and testing in house, and annual casting output of 18,000 tonnes.
How are pumps packed for export?
In fumigation-free wooden cases, which avoids the treatment and documentation that solid-wood packing requires in most destinations.
Do you accept third-party inspection?
Yes. Arrange the inspection body with the order and we will schedule the works test accordingly.
Manufacturer-direct supply · Technical pump-selection support · Export documentation on request.
