Metal-Lined Horizontal Slurry Pumps — SAH, SHH, SZP and SMC
Metal wet ends for coarse, angular, high-impact slurry. Four series across the range, with nine wear-material grades to match the duty.
High-chrome white iron wet ends — the default material for coarse, angular and high-impact slurry, where an elastomer lining would be cut rather than deflected.
- Nine-grade wear material system; four are high-chrome white irons
- A05 (KmTBCr27, ≥HRC62, ≥700 MPa) — general heavy duty, pH 5–12
- A07 (KmTBCr15Mo, ≥HRC65) — best erosion resistance where impact is lower
- A01 (≥HRC55) for mud and grout; A11 (HRC38–42) machinable
- Selection follows wear mechanism and pH, not hardness alone
- Available for impeller, volute liner, throatbush, liners and single-casing bodies
CE · EAC · ISO 9001 · ISO 14001 · ISO 45001
Pumps in This Range
SAH Slurry PumpGeneral-purpose heavy-duty range; nine wear-material grades.

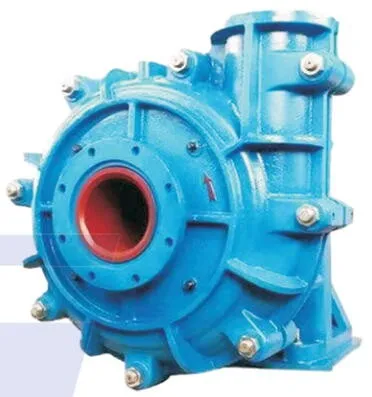

SHH High Head Slurry PumpHigh-head build for long lines and elevated discharge.
SZP Slurry PumpBimetallic construction — ductile iron outer, high-chrome inner.SMC High Efficiency Slurry PumpThree builds on one frame for SAG and ball mill duty.Overview
High-chrome white iron is the default wet-end material for heavy-duty slurry service. It resists abrasive wear by presenting a matrix of hard carbides that the particle cannot cut, and it is specified where solids are coarse, angular or arriving with impact energy — the conditions in which an elastomer lining is cut rather than deflected.
Our wear material system covers nine grades, of which four are the high-chrome white irons. Selecting between them is a matter of matching the grade to the wear mechanism and to the pH of the medium, not of choosing the hardest available.
Complete Wear Material System
| Grade | Designation | δb / δw (MPa) | Hardness | Character | Application |
|---|---|---|---|---|---|
| A05 | KmTBCr27 | ≥700 | ≥HRC62 | Erosion resistance second only to A07, with some corrosion resistance | Higher-impact abrasive wear; duty at pH 5–12 |
| A07 | KmTBCr15Mo | ≥550 | ≥HRC65 | Best erosion resistance of the group; lower corrosion-wear resistance than A05 | Higher-impact abrasive wear where erosion dominates |
| A01 | KmTBCr8 | ≥550 | ≥HRC55 | Erosion resistance about 0.9 of A05 | Mud pumps and grout pumps |
| A11 | KmTBMnMo | ≥400 | HRC38–42 | Light erosion resistance, lower hardness — can be drilled and tapped | Fine-particle media with light abrasive wear |
| A49 | Anti-wear anti-corrosive iron | ≥600 | HRC43 | Erosion resistance plus corrosion resistance at low pH | Low-pH corrosive service, particularly flue gas; desulphurisation duty at pH ≥4 |
| A33 | Anti-wear anti-corrosive iron | — | HRC35 | Erosion resistance with corrosion resistance | Oxidising slurry at pH ≥1 — phosphogypsum, nitric, sulphuric and phosphoric acid media |
| A22 | Anti-wear cast steel | 1200 | HRC45 | Good erosion and corrosion resistance, higher hardness | Dredge pump casings |
| A23 | Anti-wear cast steel | 700 | HB500–600 | Higher hardness, fair erosion resistance | Abrasive wear with higher erosion — dredge pump parts, clear-water, sewage and slurry pump components |
| A25 | Anti-wear cast steel | — | HB300–350 | Lower hardness, good anti-wear and anti-corrosion, weldable | Light erosion and abrasive wear — water carrying fine sand |
How to Read the Table
- Impact plus abrasion — A05 (KmTBCr27, ≥HRC62). The general-purpose heavy-duty grade, usable from pH 5 to 12.
- Erosion dominant, impact lower — A07 (KmTBCr15Mo, ≥HRC65). The best erosion resistance in the system, but less corrosion-wear resistance than A05.
- Lighter duty — A01 (KmTBCr8, ≥HRC55) at about 0.9 of the erosion resistance of A05, for mud and grout service.
- Machinable requirement — A11 (KmTBMnMo, HRC38–42). Lower hardness, but it can be drilled and tapped, which matters where a component must be modified or mounted.
Hardness Is Not the Only Criterion
A07 is harder than A05 and gives better erosion resistance, yet A05 is the more common selection. The reason is that A05 combines high hardness with a degree of corrosion resistance and greater tensile strength, so it tolerates impact loading and mildly corrosive media better. Specifying purely on hardness produces parts that resist erosion well and then fracture under impact. Where the medium is both abrasive and low-pH, neither grade is correct and the anti-corrosive irons should be used instead.
Components Available in High Chrome
Impeller, volute liner, throatbush, frame plate liner insert, cover plate liner, pump body and cover for single-casing gravel builds, and expeller and expeller ring for dynamic seal arrangements. On gravel pumps the whole casing is cast in wear-resistant metal because there is no separate liner.
Selection
Send the particle size distribution, the solids concentration, the medium pH and temperature, and the wear pattern seen on the parts now fitted. Wear concentrated at the throatbush, at the volute cutwater or evenly around the liner each point to different causes, and the pattern often changes the grade recommendation more than the nominal duty does.
More Pictures
Send Your Enquiry
SAH-Series Heavy-Duty Slurry Pump
SHH-Series High-Head Slurry Pump
SMC Series High-Efficiency Mill Circuit Pump
SZP Series Slurry PumpWhich grade is the general-purpose choice?
A05, KmTBCr27, ≥HRC62, tensile ≥700 MPa, for higher-impact abrasive wear between pH 5 and 12.
Why not always specify the hardest grade?
A07 is harder and more erosion-resistant, but A05 has greater tensile strength and some corrosion resistance, so it tolerates impact and mildly corrosive media better. Hardness alone produces parts that fracture.
What if the medium is acidic?
High-chrome white irons are not the answer below about pH 4–5. Use A49 for low-pH duty at pH ≥4, or A33 for oxidising slurry at pH ≥1.
Can any grade be machined after casting?
A11 (HRC38–42) can be drilled and tapped. The harder grades cannot be conventionally machined.
Are all grades available for all parts?
No. Grade availability varies by component and pump series — confirm at enquiry.
